Automatic External Ampoule Washing Machine Manufacturer And Supplier In Ghana

An Automatic External Ampoule Washing Machine is a dedicated pharmaceutical packaging solution used for cleaning the outer surface of ampoules prior to labeling, inspection, or secondary packaging. In Ghana’s pharmaceutical and injectable manufacturing sector, external ampoule washing is an essential GMP requirement to remove dust, chemical residues, and handling contaminants generated during filling, sealing, and sterilization processes.

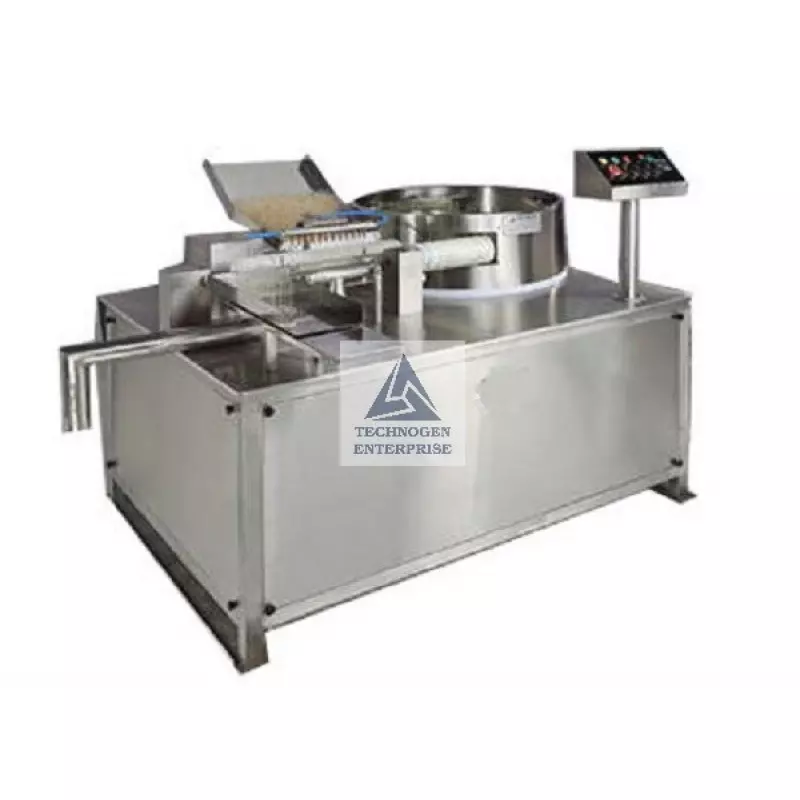

Technogen Enterprise is an established manufacturer, supplier, and exporter of Automatic External Ampoule Washing Machines, offering the Model TGAW-250RE for pharmaceutical plants in Ghana. This machine is designed on a rotary continuous motion principle and is engineered exclusively for high-efficiency external washing of ampoules.

Designed for Pharmaceutical Plants in Ghana

Pharmaceutical manufacturers in Ghana handling injectable ampoules must ensure that containers are externally clean, dry, and free from residues before downstream operations. The automatic external ampoule washing machine fulfills this requirement by providing a controlled, multi-stage washing and drying process while maintaining consistent output.

The machine is particularly suitable for 1 ml to 5 ml glass ampoules and supports continuous production environments where manual cleaning is not feasible or GMP-compliant.

Rotary Continuous Motion Working Principle

The machine operates on a rotary continuous motion system, ensuring smooth handling and uniform washing of ampoules.

Operational sequence includes:

• Manual loading of ampoules through tray system

• Precise ampoule spacing using a feed worm

• Transfer of ampoules to rotating wheel for washing

• First external washing using tap water or detergent wash (optional)

• Second external washing using fresh tap water

• Final drying using a combination of dry air and hot air

• Discharge of completely dry ampoules through exit feed worm

This process ensures that no water droplets or residues remain on the ampoule surface, supporting clean handling and inspection.

Four-Stage External Washing and Drying

The machine is configured with four external washing and drying stations, consisting of:

• First washing station – tap water or detergent wash

• Second washing station – fresh tap water rinse

• Third station – dry air blowing

• Fourth station – hot air drying

This combination ensures effective removal of surface contaminants followed by complete drying of ampoules.

Salient Features

• CGMP-compliant machine design

• Machine body manufactured from AISI 304 stainless steel

• Rotary continuous motion for uniform washing

• Worm gearbox coupled with geared motor for main drive

• Tray-based loading and unloading of ampoules

• Four-stage external washing and drying sequence

• Two SS 316L water tanks (50-liter capacity each)

• Horizontal multistage centrifugal pumps for consistent pressure

• Variable frequency drive for speed regulation

• Compact and stable construction suitable for pharmaceutical environments

Construction and Hygiene Standards

All critical components are manufactured using pharmaceutical-grade stainless steel, ensuring resistance to corrosion and ease of cleaning. The SS 316L tanks and piping ensure compatibility with water and optional detergent solutions used during washing.

The enclosed rotary washing arrangement minimizes splash and contamination while allowing smooth, continuous operation.

Applications in Ghana’s Pharmaceutical Industry

Injectable Manufacturing Units
Used for external cleaning of sealed ampoules prior to inspection and labeling.

Sterile Formulation Plants
Ensures removal of residues generated during sealing and sterilization.

Export-Oriented Pharmaceutical Facilities
Supports compliance with international cleanliness and GMP expectations.

Contract Manufacturing Organizations
Ideal for standardized external washing of ampoules across multiple products.

Technical Specifications

Optional Add-On Features

• PLC with HMI interface

• Detergent washing arrangement for heavy contamination

• Swiss air heating system for enhanced drying efficiency

Pharmaceutical manufacturers seeking an automatic external ampoule washing machine manufacturer and supplier in Ghana benefit from a solution that ensures consistent external cleanliness, reliable drying, and compliance with GMP standards. This machine supports clean handling of ampoules before inspection and packaging, helping manufacturers maintain product quality, operational consistency, and regulatory confidence within Ghana’s pharmaceutical manufacturing ecosystem.
