Automatic Glass Bottle RFC Isobaric Carbonated Beverage Filling Machine Ghana

Automatic Glass Bottle RFC Isobaric Carbonated Beverage Filling Machine

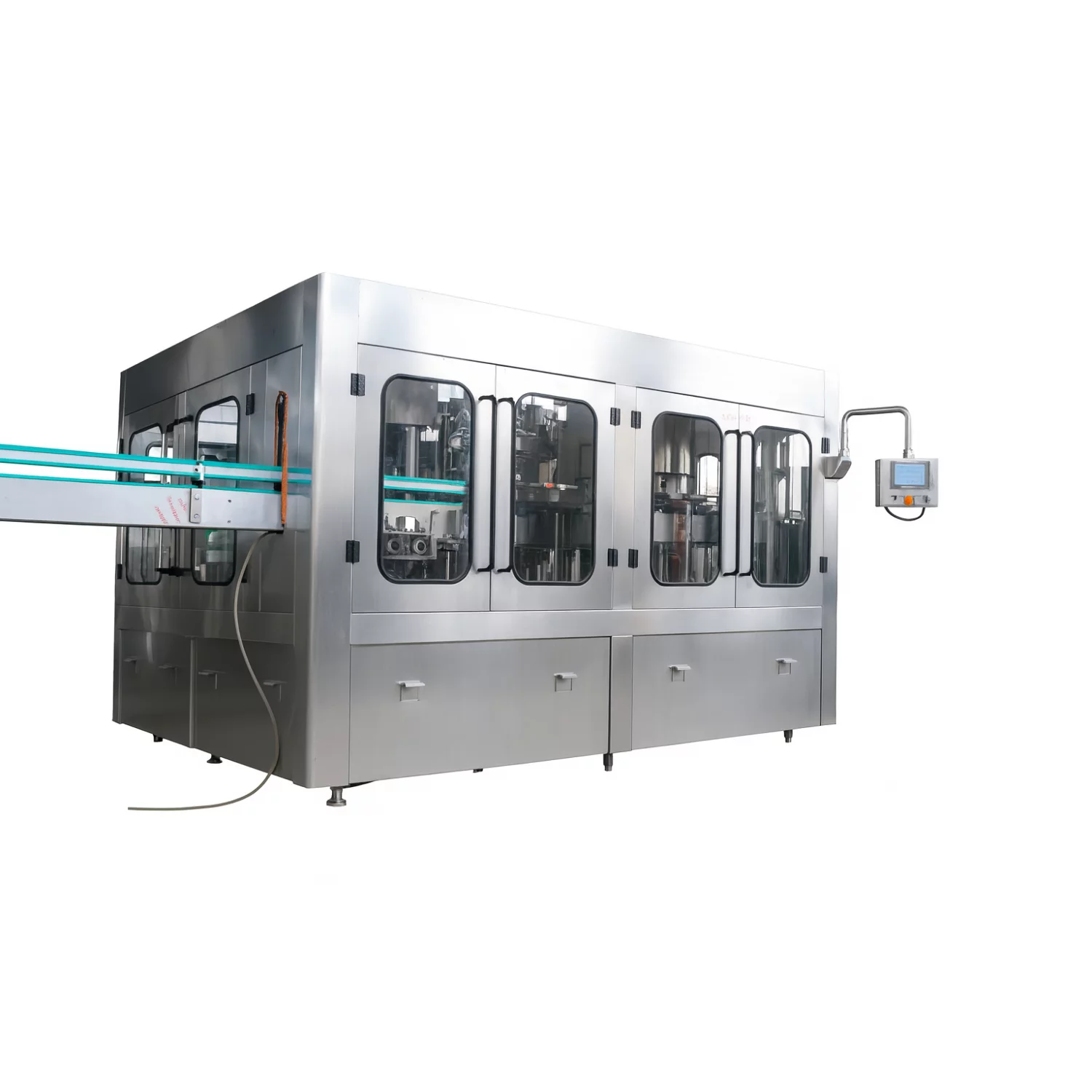

As a trusted Isobaric Carbonated Beverage Filling Machine manufacturer and supplier in Ghana, Technogen Enterprise presents the Automatic RFC Isobaric Carbonated Beverage Filling Machine, a high-performance monoblock system engineered for precision bottling of carbonated beverages in glass bottles.

Beverage manufacturers operating in Accra, Tema Industrial Area, Kumasi, Takoradi, and other emerging production hubs in Ghana require filling solutions that preserve carbonation, ensure hygiene, and maintain consistent fill levels at commercial speeds. This RFC monoblock integrates Rinsing, Isobaric Filling, and Capping into a single synchronized platform designed to meet international bottling standards.

The machine is suitable for 100 ml to 1000 ml glass bottles and can be supplied with Crown Capping or ROPP Aluminium Capping, allowing producers to adapt to different beverage categories, branding strategies, and export market requirements.

Built for Carbonated Beverage Processing

Carbonated beverages require specialized handling during filling to prevent CO₂ loss, foaming, and oxidation. Unlike still liquids, carbonation demands controlled pressure environments, precise valve operation, and minimal turbulence.

The RFC Isobaric Carbonated Beverage Filling Machine is specifically designed to address these challenges by combining:

• Counter-pressure isobaric filling technology

• Oxygen-controlled filling environment

• Accurate headspace management

• Stable sealing immediately after filling

This design enables beverage producers in Ghana to deliver consistent product quality while meeting shelf-life expectations and regulatory standards.

Beverage Applications Supported

The system is ideal for a wide range of carbonated products, including:

• Carbonated soft drinks

• Soda and aerated beverages

• Fruit-based sparkling drinks

• Beer and craft beer

• Tonic water

• Carbonated functional beverages

• Energy drinks

Its flexibility makes it suitable for both established bottling plants and fast-growing beverage brands targeting local distribution and export markets.

Machine Design and Construction

The Automatic RFC Isobaric Carbonated Beverage Filling Machine is constructed on a heavy-duty stainless-steel monoblock frame designed for continuous industrial operation. Product contact parts are manufactured from SS304 or SS316L, ensuring corrosion resistance, hygiene, and compliance with food-grade requirements.

Key design elements include:

• Rotary rinser turret with secure neck-handling grippers

• Pressurized isobaric filling bowl for carbonation stability

• ULTRA mechanical isobaric filling valves

• Smooth star-wheel bottle transfer system

• Integrated crown or ROPP capping turret

• Full safety guarding with interlocking doors

• PLC and HMI-controlled automation

All surfaces are designed for easy cleaning and compatibility with CIP procedures, minimizing downtime and maintenance effort.

Working Process of RFC Isobaric Filling Machine

Bottle Rinsing Stage

• Bottles are held firmly by neck grippers

• Inverted during rinsing for complete internal cleaning

• Stainless-steel spray nozzles ensure uniform rinsing

• Water or sterile air rinsing options available

• Automatic “No Bottle – No Rinse” control prevents wastage

This stage ensures bottles entering the filling zone are free from dust, particles, and contaminants.

Isobaric Counter-Pressure Filling

Isobaric filling is essential for preserving carbonation and product quality. The RFC machine uses a controlled counter-pressure process that maintains equilibrium between tank pressure and bottle pressure.

Filling process sequence:

• Bottle is lifted and sealed against the filling valve

• Air inside the bottle is evacuated to reduce oxygen presence

• CO₂ is introduced to equalize bottle and tank pressure

• Beverage flows gently through long filling tubes

• Turbulence is minimized to prevent foaming

• Controlled venting releases excess gas for accurate fill level

Benefits of isobaric filling:

• Preserves carbonation levels

• Prevents oxidation

• Ensures uniform liquid height

• Improves taste and shelf stability

• Reduces product loss due to foaming

Capping System Options

The RFC machine can be configured with one of the following capping systems:

Crown Capping

• Suitable for beer, soda, and aerated beverages

• Tamper-proof sealing

• Compatible with 26 mm and 29 mm crown caps

• Magnetic capping heads for consistent torque

ROPP Aluminium Capping

• Preferred for premium beverages and tonic water

• Adjustable knurling rollers for secure sealing

• Leak-proof performance on glass bottles

• Smooth and stable operation

The capping turret is synchronized with the filling system to ensure secure sealing without bottle stress or breakage.

Salient Features

• Fully automatic rotary Rinser–Filler–Capper monoblock

• Designed for 100 ml to 1000 ml glass bottles

• Choice of Crown or ROPP aluminium capping

• Food-grade stainless steel construction

• ULTRA isobaric valve technology

• Controlled CO₂ pressurization and venting

• Minimal foaming and precise fill accuracy

• PLC and HMI-based control system

• CIP-compatible product contact parts

• Smooth bottle handling with star-wheel transfer

• Safety doors with interlocking switches

• Energy-efficient drives and motors

Technical Specifications – RFC Isobaric Carbonated Beverage Filling Machine

Advantages for Beverage Manufacturers in Ghana

• Maintains carbonation integrity

• Highly consistent fill accuracy

• Reduced oxygen pickup

• Low foaming during filling

• Minimal operator intervention

• Efficient cleaning and sanitation

• Quick changeover between bottle sizes

• Long operational life with low maintenance cost

• Suitable for premium and mass-market beverages

Ideal Applications

• Breweries and craft beer units

• Soda and carbonated soft drink plants

• Sparkling fruit beverage producers

• Tonic water manufacturers

• Energy drink bottling units

• Contract beverage bottling facilities

The machine supports a wide range of glass bottle formats commonly used in Ghana’s beverage market.

Why Choose Technogen Enterprise in Ghana

Technogen Enterprise is internationally recognized for delivering high-quality beverage packaging machinery that meets global performance and hygiene standards. As an experienced Isobaric Beverage Filling Machine manufacturer and supplier, the company supports Ghanaian beverage producers with reliable, export-ready solutions.

Key strengths include:

• Precision-engineered carbonation filling systems

• Strong global export experience

• Premium stainless-steel fabrication

• Custom configurations based on production needs

• Competitive pricing with long-term reliability

• Professional installation and commissioning support

Beverage manufacturers seeking stable carbonation control, consistent output quality, and scalable production capacity will find the Automatic RFC Isobaric Carbonated Beverage Filling Machine to be a dependable investment for long-term growth and market competitiveness.
