Introduction to Fluid Bed Dryers
In industries where drying efficiency, hygiene, and uniformity are critical to final product quality, selecting the right drying technology is essential. In pharmaceutical, food, chemical, herbal, and cosmetic manufacturing, improper drying can lead to inconsistent formulations, contamination risks, and extended production cycles. This is why the Fluid Bed Dryer (FBD) has become one of the most widely adopted and reliable drying solutions in modern processing plants.
Technogen Enterprise,is a globally recognized manufacturer, supplier, and exporter of Fluid Bed Dryers, supplying advanced drying solutions to international markets including Ghana. Designed in accordance with cGMP standards, Technogen Fluid Bed Dryers combine robust construction, precise airflow control, and hygienic design to meet the demanding requirements of regulated industries.
As Ghana’s pharmaceutical and food manufacturing sectors continue to expand in cities such as Accra, Tema, and Kumasi, Fluid Bed Dryers are increasingly preferred for their speed, consistency, and compliance with international quality standards.

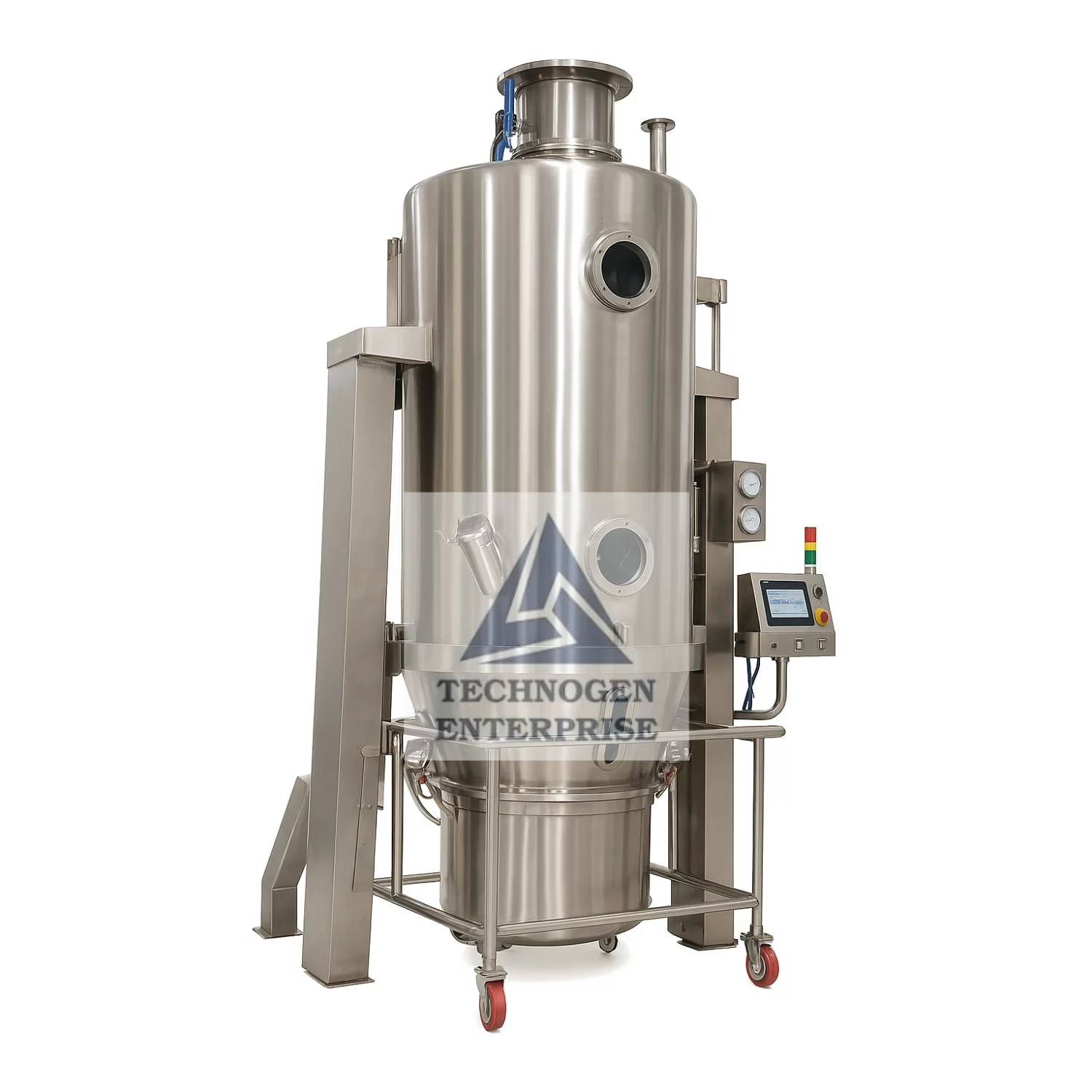

What Is a Fluid Bed Dryer?
A Fluid Bed Dryer is an advanced drying system used to dry powders, granules, and other solid materials by suspending them in a stream of heated air. When the airflow reaches a specific velocity, the material behaves like a fluid, allowing each particle to be evenly exposed to heat.
Compared to conventional tray or oven dryers, Fluid Bed Dryers offer:
Uniform and controlled drying
Faster moisture removal
Reduced product handling
Improved batch-to-batch consistency
These advantages make FBDs indispensable in pharmaceutical and food-grade applications where moisture control directly impacts product stability and shelf life.
Working Principle of a Fluid Bed Dryer
The principle of operation is based on fluidization. Heated air is passed upward through a perforated distributor plate at the bottom of the product container. When the air velocity is sufficient, the particles lift and circulate freely, creating a fluid-like state.
This fluidized condition ensures:
Maximum contact between hot air and product
Rapid and even heat transfer
Uniform drying across the entire batch
Once the desired moisture content is achieved, the dried material is discharged using a lifting and tilting mechanism, ensuring smooth and hygienic handling.
How a Fluid Bed Dryer Operates
The drying cycle of a Fluid Bed Dryer typically follows these steps:
Loading: Wet granules or powders are loaded into the product container.
Air Filtration & Heating: Ambient air is filtered and heated to the required temperature.
Fluidization: Hot air passes through the perforated plate, suspending the particles.
Drying: Continuous circulation removes moisture uniformly from all particles.
Discharge: The dried product is safely discharged for further processing.
This automated and controlled process significantly reduces drying time while maintaining consistent quality.
Salient Features of Technogen Fluid Bed Dryers
cGMP-Compliant Design suitable for pharmaceutical and food industries
Single-Piece Modular Construction for strength and long service life
Uniform Drying Performance through optimized airflow distribution
Low Noise Operation for a better working environment
Stainless Steel Construction (SS 304 / 316 / 316L) for hygiene and corrosion resistance
Minimal Manual Handling reducing contamination risk
Integrated Lifting & Tilting System for easy discharge
Manual or PLC-Controlled Automation Options
Wide Capacity Range from small batches to large-scale production
Optional Features
Online sampling port for in-process quality checks
Pneumatic shaking system for improved fluidization
Flame-proof (FLP) execution for solvent-based or hazardous materials
Customized electrical configurations for Ghana and other international markets
Technical Specifications of Fluid Bed Dryer
| Model | TGFBD-30 | TGFBD-60 | TGFBD-120 |
|---|---|---|---|
| Batch Size (kg) | 25 – 30 | 50 – 60 | 100 – 120 |
| Container Volume | 71 | 142 | 288 |
| Air Flow (m³/hr) | 1200 | 1800 | 3200 |
| Static Pressure | 600 mm | 600 mm | 800 mm |
| Drying Temp. | 45 – 80 °C | 45 – 80 °C | 45 – 80 °C |
| Blower Motor | 7.5 HP | 10 HP | 15 HP |
Applications of Fluid Bed Dryers
Pharmaceutical Industry: Drying granules for tablets and capsules
Food Industry: Drying spices, powders, and ingredients
Chemical Industry: Moisture removal from polymers and specialty chemicals
Herbal Processing: Drying plant extracts while preserving active compounds
Cosmetic Manufacturing: Drying fillers and powdered cosmetic ingredients
Advantages for Ghanaian Manufacturers
Fluid Bed Dryers offer Ghana-based manufacturers several operational benefits:
Faster production cycles with uniform drying
Energy-efficient operation
Easy cleaning and maintenance
Compliance with international regulatory standards
Scalability for growing production capacities
These advantages make FBDs a strategic investment for pharmaceutical and food processors targeting both local and export markets.
Why Choose Technogen Enterprise for Fluid Bed Dryers in Ghana?
As a reliable manufacturer, supplier, and exporter of Fluid Bed Dryers, Technogen Enterprise provides:
Precision-engineered machines with proven performance
Full compliance with cGMP, FDA, and ISO norms
Export-ready designs with global installation experience
Customized solutions based on process requirements
Strong technical and after-sales support
Driving Drying Efficiency with Fluid Bed Dryers
A Fluid Bed Dryer is more than a drying unit—it is a critical process machine that directly impacts product quality, consistency, and compliance. With hygienic design, uniform drying, and automation-ready features, Technogen Fluid Bed Dryers help manufacturers in Ghana achieve higher productivity and global-quality standards.
With its strong reputation as a Fluid Bed Dryer manufacturer, supplier, and exporter, Technogen Enterprise continues to support pharmaceutical, food, chemical, herbal, and cosmetic industries with reliable and future-ready drying solutions.
