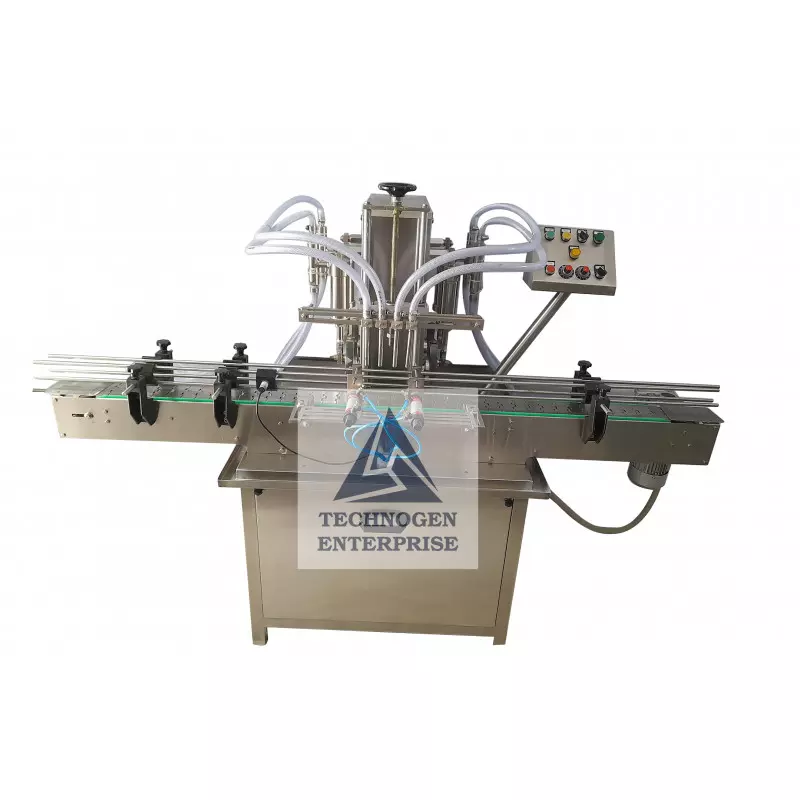

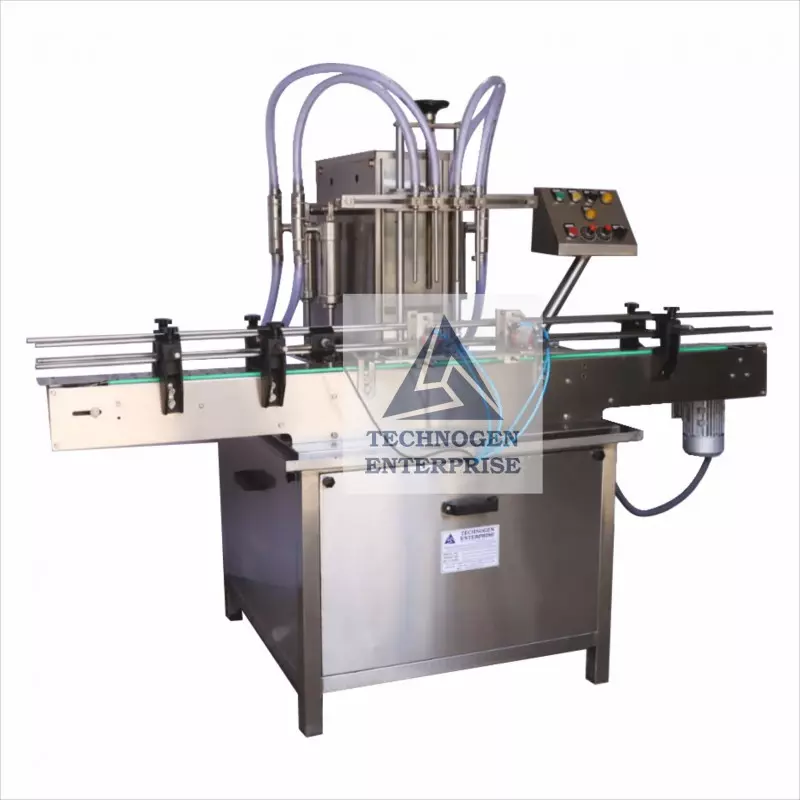

Automatic Volumetric Liquid Filling Machine Manufacturer And Supplier In Ghana

An Automatic Volumetric Liquid Filling Machine is a core production asset for manufacturers that require consistent, accurate, and hygienic filling of liquid products into bottles. In Ghana, industries such as pharmaceuticals, food and beverages, cosmetics, syrups, and specialty chemicals depend on volumetric filling technology to maintain batch uniformity, reduce product loss, and meet regulatory expectations.

Technogen Enterprise is an experienced manufacturer and supplier of automatic volumetric liquid filling machines for Ghana, offering robust, modular systems engineered for reliable operation across a wide range of bottle sizes, shapes, and liquid characteristics. These machines are designed for continuous production environments where precision and repeatability are essential.

Purpose-Built for Ghana’s Manufacturing Requirements

Manufacturers in Ghana often handle multiple SKUs, varying bottle formats, and different liquid viscosities on the same production line. This automatic volumetric liquid filling machine is developed on a modular design concept, enabling quick adaptation to changing production needs while maintaining stable filling accuracy.

Available in configurations with 2, 4, 6, 8, and 12 filling heads, the machine supports output requirements ranging from small-scale production to higher-capacity lines, making it suitable for both growing manufacturers and established plants.

Volumetric Filling Principle

The machine operates on a proven volumetric syringe-based filling system. Liquid is drawn from the storage tank into calibrated syringes and then dispensed into bottles with controlled accuracy.

Key operational steps include:

• Bottle detection using photoelectric sensors

• “No bottle, no filling” interlock to prevent spillage

• Controlled descent of diving nozzles into the bottle neck

• Precise volumetric discharge through syringes

• Smooth nozzle withdrawal without dripping

This principle ensures consistent fill volumes regardless of minor variations in liquid flow behavior, supporting uniform product presentation and compliance.

Construction and Metallurgy

The automatic volumetric liquid filling machine is manufactured in line with CGMP requirements, ensuring suitability for regulated industries operating in Ghana.

• All liquid contact parts are manufactured from AISI 316L stainless steel

• Machine body, doors, and conveyors are fabricated from AISI 304 stainless steel

• Smooth surface finishes facilitate easy cleaning and maintenance

This construction provides corrosion resistance, hygiene, and long service life, even in demanding production environments.

Salient Features

• CGMP-compliant machine design

• Modular construction suitable for multiple bottle formats

• AISI 304 stainless steel machine body and conveyor

• AISI 316L stainless steel contact parts for sanitary filling

• Tool-less adjustable guide rails for quick changeover

• Adjustable ram shaft eccentricity for easy volume setting

• Wide syringe range for 5 ml to 1000 ml filling

• Double-stroke option for higher fill volumes

• Self-centering mechanism for non-concentric bottles

• Diving nozzles to prevent foaming and splashing

• Liquid collection tray to protect transmission components

• Variable frequency drive for speed control

• Inbuilt production counter for output monitoring

Bottle Handling and Changeover Flexibility

The machine is designed to accommodate bottles with diameters from 16 mm to 100 mm and heights up to 100 mm. Tool-less guide rails and adjustable conveyor height allow operators to switch between bottle sizes with minimal downtime.

The self-centering bottle mechanism ensures accurate nozzle alignment, even when bottle geometry varies slightly, which is common in locally sourced containers used by Ghanaian manufacturers.

Applications Across Industries in Ghana

Pharmaceutical Industry
Used for filling syrups, oral liquids, suspensions, and other medicinal formulations where accuracy and hygiene are mandatory.

Food and Beverage Industry
Suitable for filling flavoring liquids, sauces, concentrates, and nutritional products.

Cosmetics and Personal Care
Ideal for filling lotions, oils, serums, and liquid cosmetic products into bottles.

Chemical and Allied Industries
Used for accurate filling of non-corrosive industrial and specialty liquids.

Production Efficiency and Control

The machine integrates photoelectric sensors for bottle detection and a “No bottle, no filling” feature, minimizing product wastage and maintaining a clean production floor. Speed variation through a variable frequency drive allows synchronization with upstream and downstream equipment such as bottle washers, cappers, and labeling machines.

The inbuilt production counter provides real-time monitoring of output, supporting batch tracking and production reporting.

Technical Specifications

Optional Add-On Features

• Buffer tank with stirrer

• Polycarbonate or toughened glass safety enclosure

• Tower light for machine status indication

• PLC with HMI interface

• 21 CFR Part 11 compliance

• Ceiling-suspended or integrated laminar air flow hood

Manufacturers seeking an automatic volumetric liquid filling machine manufacturer and supplier in Ghana benefit from equipment designed to deliver consistent filling accuracy, operational flexibility, and hygienic performance. This machine supports stable production, reduces material wastage, and integrates smoothly into modern bottle filling lines, making it a practical choice for Ghana-based facilities aiming to strengthen liquid filling operations while maintaining process control and compliance.
